Freedom X 13M - 14.5M - 16M  Aluminum airframe, carbon-fiber struts      starting at    $5900.00
Freedom X 13M  -  144 square feet      starting at    $7390.00
Freedom X 14.5M  -  161 square feet      starting at    $7390.00
Freedom X 16M  -  177 square feet      starting at    $7390.00

The Freedom X 14.5M is HGMA Certified
Freedom X Demo Flight Video   Watch a very fun video of launching, soaring, and landing the Freedom X.

North Wing Design · Freedom X Hang Glider

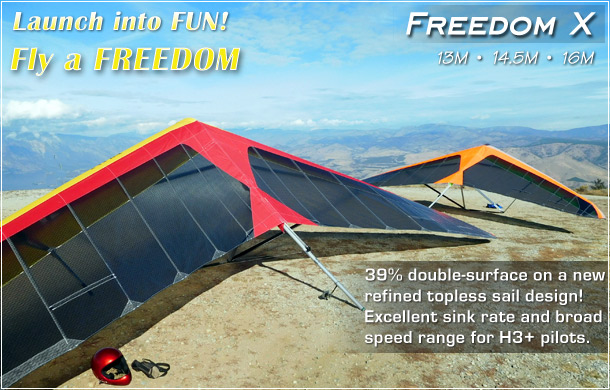

The Freedom X is a 39% double surface (exposed crossbar) no-top-rigging hang glider.

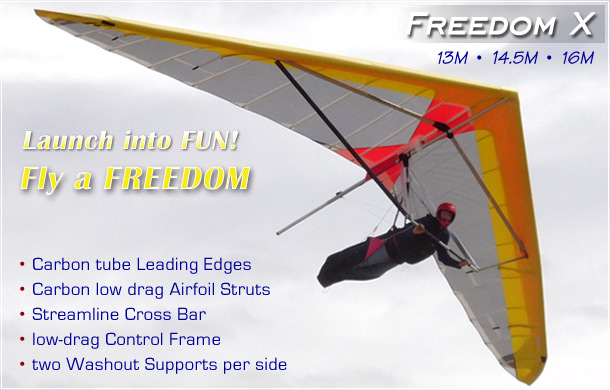

It features Carbon tube Leading Edges, Carbon low-drag airfoil Struts, low-drag Control Frame, Streamline Cross Bar and two Washout Supports per side for pitch stability.

3 sizes are now available!  We believe it to be the finest exposed X-bar, strutted recreational flex wing in the market today.  The FREEDOM X is an intermediate to advanced hang glider.

REFINED SAIL DESIGN
The Freedom X achieves exceptional low speed performance and superb handling for many reasons. It's sail body and cut are composed of a carefully selected and applied, industry-proven design of the latest materials that are matched to the leading edge curve.
The sail features a leading edge pocket reinforced with a mylar insert sheet.  Drag is reduced and performance is increased with a highly refined sail, streamlined tubing, clean hardware and low twist.  These features combine to ensure good usable flight performance and stability.

FLY HIGH AND FAR!
We believe the Freedom X to be one of the finest recreational flex-wing gliders available on the market today.  It achieves exceptional performance and very good handling for many reasons.  Our gliders have a sail cut that is carefully matched to the leading edge bend and precisely designed airfoil, floating crossbar and mylar-reinforced leading edge pockets.
These features combine to ensure a good usable glide angle, an excellent sink rate, and a broad speed range making the Freedom X both an excellent intermediate soaring wing and a reliable cross country glider.

The new strutted Freedom X gives you the most positive and solid feel on launch... the feel of absolute control of your wing.
That translates to the air as well, giving you positive feed-back without delay from slack wires.  You will be amazed at the ease of handling the Freedom X will give you.  This will give you hours of enjoyable flying without fatigue when you come in for a landing.  Landings!!  Yes!!  Finally a glider you can look forward to landing.  So easy to land with a large flare window, and the Freedom X wants to keep the nose up.  From launch to landing and 100 miles in between... or just flying with your friends locally, the Freedom X is a glider you can be proud to own.  Click here to find a North Wing Dealer in your area.

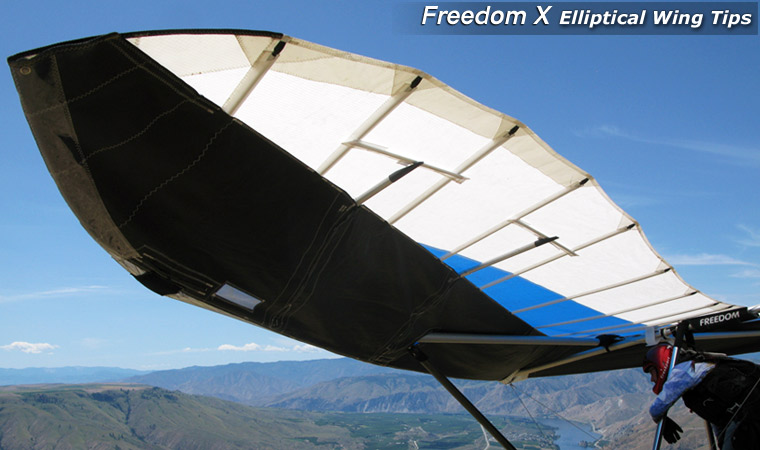

The highly-refined sail shaping on the Freedom X's elliptical tips ensures an efficient airfoil shape far into the curved tip!


Freedom X   exceptional low speed performance and superb handling

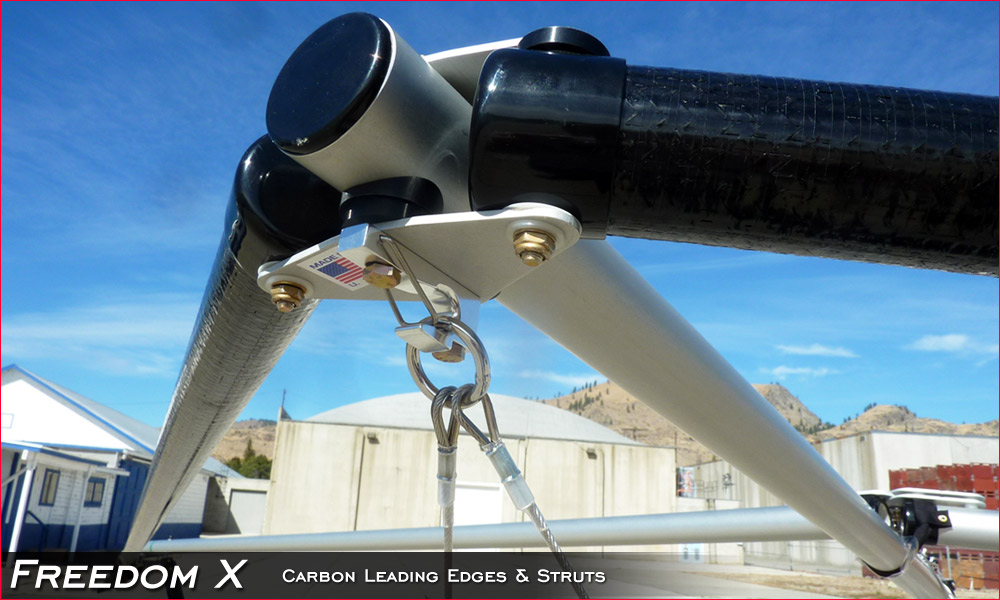

Click here to view an enlargement - Carbon Strut Junction with VGClick here to view an enlargement - Freedom X top-surfaceClick here to view an enlargement - Carbon Leading Edges and Nose hardware

Click here for enlargement - Wing Tip Speed Vents promote consistent airfoil shape at higher speeds
Speed Vents promote consistent airfoil shape at higher speeds
Standard Equipment on the Freedom X, Freedom, and Liberty


The rectangular, mesh-fabric speed vents near the tips of the glider helps prevent the under-surface of the sail from inflating out at the tip of the glider.  Minimizing the under-surface from breathing, and promoting a consistent profile ensures an improvement of un-interrupted airflow around the wing, resulting in better performance when you fly at higher speeds.

Freedom 16M · Specifications
Double Surface    39%
Area (square feet)  177
Span (feet)    34.5
Aspect Ratio    6.7
Number of Ribs    19 Top
Frame Material    Carbon + 7075
Rib Material    7075
Glider Weight (lbs)    71
Pilot Hook-In Weight (lbs)    200-290
USHPA Rating    3 - 5
Freedom 13M · Specifications
Double Surface    39%
Area (square feet)  144
Span (feet)    30.7
Aspect Ratio    6.55
Number of Ribs    17 Top
Frame Material    Carbon + 7075
Rib Material    7075
Glider Weight (lbs)    64
Pilot Hook-In Weight (lbs)    130-210
USHPA Rating    3 - 5
Freedom 14.5M · Specifications
Double Surface    39%
Area (square feet)  161
Span (feet)    32.66
Aspect Ratio    6.6
Number of Ribs    19 Top
Frame Material    Carbon + 7075
Rib Material    7075
Glider Weight    68
Pilot Hook-In Weight (lbs)    160-240
USHPA Rating    3 - 5

Maximum stall speed  24 mph  ·  Minimum top speed  47mph  ·  VNE speed (Never exceed)  54 mph

Ultimate Load Test - performed at:
Positive (nose up) angle at the speed of 64 mph @ 35 degrees
Negative (nose down) angle at the speed of 47 mph @ -30 degrees
Negative (tail down) angle at the speed of 32 mph @ -150 degrees

Pitch stability test - performed at:
20 mph through the pitch range of +35 degrees down to -25 degrees
37 mph through the pitch range of +25 degs down to -15 degrees.
54 mph through the pitch range of +10 degrees down to -5 degrees


Whoosh Wheels for BaseTube - for North Wing Hang Gliders
Whoosh Wheels     Increase safety for your landings
Click here to buy this item at NorthWingSports.com

Whoosh Wheels are machined PVC with high quality, and provide a margin of safety for your landings.  Available for streamlined or round basetubes, either 6.25" diameter or 8" diameter wheels for additional ground clearance.
Sold as a pair.
$200.00

Quick Safe Wheels for BaseTube - for North Wing Hang Gliders
Quick Safe Wheels     Increase safety for your landings
Click here to buy this item at NorthWingSports.com

Snap-together wheels for round basetubes (with or without VG), providing additional safety for your landings.

$57.00

Hall Wheels for BaseTube - for North Wing Hang Gliders
Hall Wheels     Increase safety for your landings
Click here to buy this item at NorthWingSports.com

Rugged 5" ABS plastic Wheels for round basetubes, providing additional safety for your landings.

$49.00

North Wing · All-Weather Hang Glider Bag All-Weather Hang Glider Bag

Click here to buy this item at NorthWingSports.com
Be assured of maximum weather-resistant protection for your hang glider with the All Weather Glider Bag from North Wing Sports. Sewn from heavy 6 oz “Sunsation” cloth, providing up to 5-year UV protection. Full-length zipper is protected by a fabric flap that is secured over the entire length by a Velcro seal, ensuring minimal exposure to dust, rain and snow. Includes handle for easy carry.  Click Here to view a photo enlargement.

$250.00  Order Code: HAB11AW

North Wing · Gloves Cross Country Hang Glider Bag

Click here to buy this item at NorthWingSports.com
When you're planning a day of get-high go-far hang gliding, bring along the Cross Country Glider Bag from North Wing Sports. Sewn from strong and lightweight 220 denier Nylon packcloth, the bag has a full-length zipper and handle for easy carry. Enjoy full-glider protection on the long ride home with this glider transport bag.

Click Here to view a photo enlargement.

$160.00  Order Code: HAB12
