Maverick KS · Ultralight Trike Wing starting at $7,550.00
Maverick KL · Ultralight Trike Wing starting at $7,750.00
Upgrade the Round Uprights to Aerofoil Uprights for an additional $120.00
Upgrade the Round Struts to Aerofoil Struts for an additional $160.00
Powder-coat the Control Bar and Struts with custom color for an additional $340.00

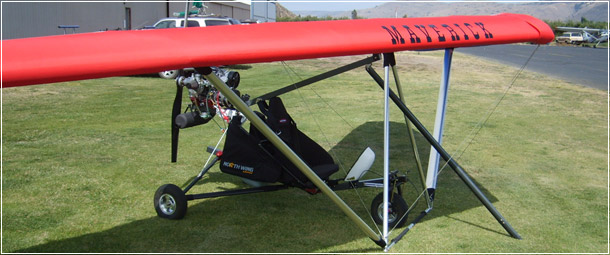

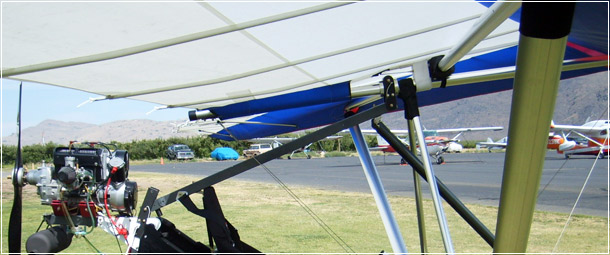

The Maverick KS Wing has been improved, featuring a strutted airframe instead of the older kingpost and wires design that added drag and reduced flight performance. We have increased the load rating of the wing, from 550 gross to 650 gross by a new airframe. The increased load rating is especially helpful for pilots who like to fly on floats. The Maverick KS wing has another feature for convenient travel or storage, the ability for the wing to fold back while attached to the trike. Refer to the photos for examples of the new improvements on the Maverick KS, the perfect single-place ultralight from North Wing Design.
It is very important to us to offer you the best wing we can make. We could use tubing that costs less, but we choose to have our own tubing produced for specific main spars. We also could buy cheaper sail cloth; again, we choose to purchase the best.
We use all aircraft hardware and materials tested to required aircraft strength.
Speed references on flex wings are +/- 10%The Maverick KS wing has been load-tested to
dynamic +6 G's and -3 G's... built for strength!
Why fly a quality-built North Wing?
• Extremely rugged Airframe and Hardware
• Highest Quality Sail Cloth
• Aircraft Quality Parts and Tubing
• All Parts Made In the U.S.A.
• The Strongest Trike Wings Made In the U.S.A.
• Quality and Service you can fly on!
| Maverick KS 15.2M Wing Specifications | ||
| Wing Weight | 88 lbs. | |
| Gross Weight | 650 lbs. | |
| Wing Area | 160 square feet | |
| Span | 31.5 feet | |
| Aspect Ratio | 6.1 : 1 | |
| Double Surface | 35% | |
| Frame | 6061-T6 | |
| Sail - main body | 5.5 oz. | |
| # of Ribs - top | 15 | |
| Rib Material | 7075-T6 | |
| Length in Bag or folded back | 18.25 feet | |
 |
Upgrade your Round Uprights to drag-reducing Aerofoil Uprights Aerofoil Control Bar Uprights Reduce drag and improve fuel economy with our Aerofoil Control Bar Uprights. The streamlined shape looks great and improves your wing's performance. $120.00 Order Code: UPG46TK |
 |
Upgrade your Round Struts to drag-reducing Aerofoil Struts Aerofoil Struts Reduce drag and improve fuel economy with our Aerofoil Struts. The streamlined shape looks great and improves your wing's performance. $160.00 Order Code: UPG61 |
 |
Powder-Coat custom color for Control Bar & Struts Customize your new wing with a custom color applied with our Powder Coat paint process. Your wing will look great and also benefit from the powder-coat's corrosion barrier seal. $340.00 Order Code: UPG42 |
 |
Trike Wing Cover Protect your trike wing from snow, rain, dust and especially UV when it is set-up with the North Wing Wing Cover. $335.00 Order Code: HAC14 (please specify wing name) |
$49.00 These vertical base tube grips give you a more natural hand position while flying your trike to reduce hand strain. Also, the grips give you ultimate control when the condition get a little active, especially while landing. They are quick to install on your base tube to your desired position.
Click here or Click Photo to view enlargement Order Code: HT7003
